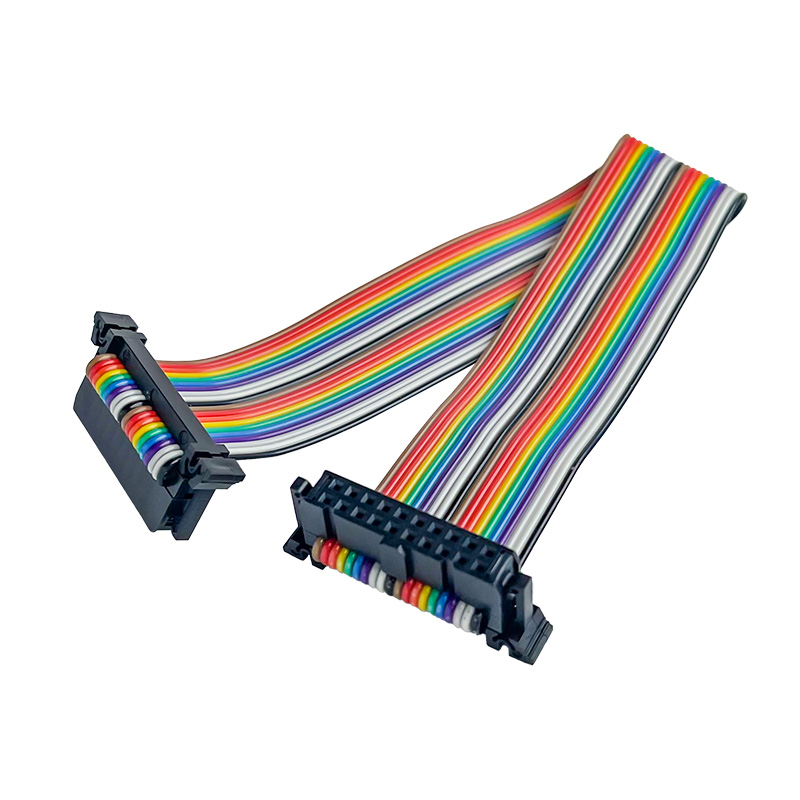

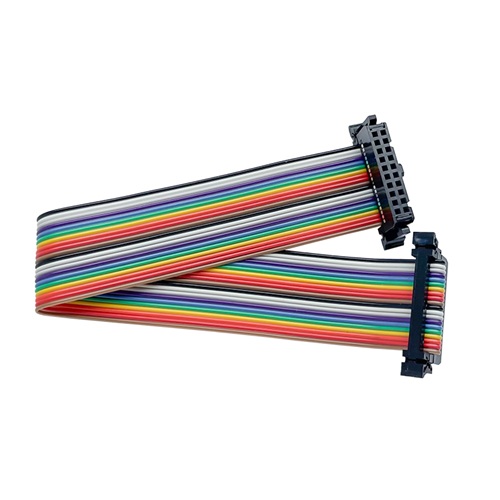

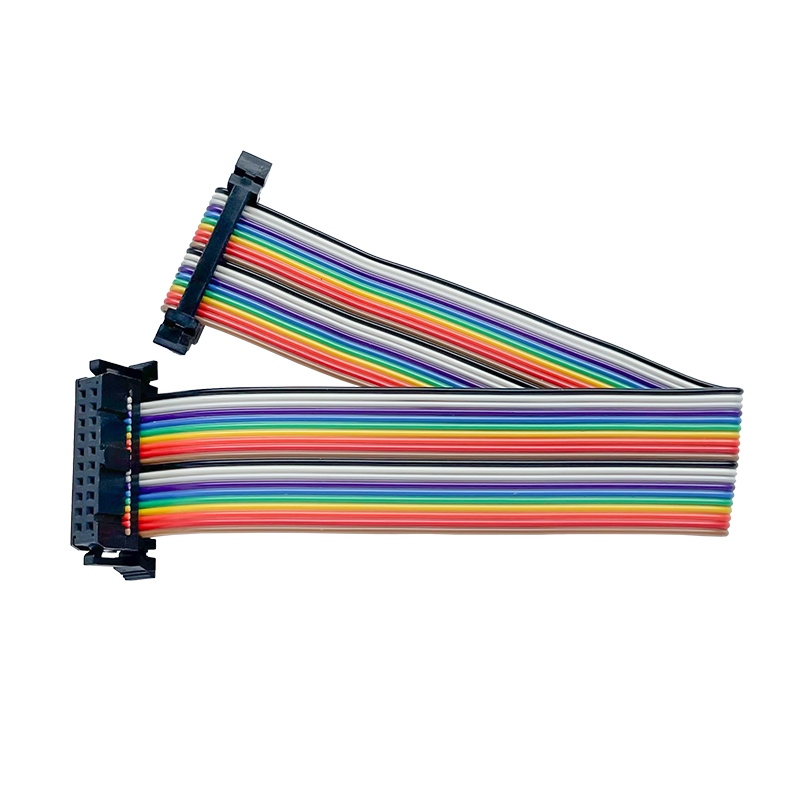

Custom 20P 2651 28AWG Flat Ribbon Cable Harness with FC2.54 Dual-Row Connectors
This rehearsal line wire harness uses high-quality 2651 28AWG flat ribbon wire, ideal for internal wiring of electronic devices such as computers, charging devices, power controllers, and automation systems. The 20-pin cable (20P) is arranged in a flat, color-coded structure for easy identification and simplified installation.
Both ends of the cable are precision-crimped with FC2.54-2×10P female connectors, equipped with a butterfly buckle design to ensure secure locking, vibration resistance, and stable long-term electrical contact. The standard length is 200mm, but any length, pin count, or connector orientation can be fully customized based on customer needs.
This cable harness is suitable for applications requiring compact wiring, stable signal transmission, and reliable internal connections in consumer electronics, industrial control systems, and charging equipment.
Specifications
| Attribute |
Specification |
| Product Name |
Flat Ribbon Cable Wire Harness |
| Cable Type |
2651 28AWG Flat Ribbon Cable |
| Wire Gauge |
28 AWG |
| Pitch (Spacing) |
2.54mm |
| Pin Count |
20 Pins |
| Connector Type |
FC2.54-2×10P Female Connectors |
| Standard Length |
200mm (custom length available) |
| Protection |
PVC insulation, flame-retardant, IP20 environment grade |
| Customization |
Custom lengths and configurations available |
| Common Applications |
Computer, control power supply, charging devices, electronics |
Key Features:
- High-Density Connection: The 1.0mm fine pitch is perfect for modern, compact electronic devices, saving valuable space within an enclosure.
- Enhanced Durability: Equipped with black heat shrink tubing at the connector ends. This provides superior strain relief, preventing wire fraying and disconnection from vibration or bending.
- Reliable Signal Integrity: Manufactured using high-quality UL2651 28 AWG wire, ensuring stable and clear signal transmission for control and data applications.
- Secure Termination: IDC (Insulation-Displacement Contact) connectors provide a fast, reliable, and gas-tight connection by displacing the wire's insulation, eliminating the need for stripping.
- Fully Customizable: We are a manufacturer offering OEM/ODM services. We can easily customize the cable length to your exact specifications to ensure a perfect fit for your product.
- Versatile Application: An ideal solution for a wide range of uses, including internal computer wiring, industrial control systems, power supplies, and data transfer equipment.
Why Choose Us?
Shenzhen Smart Connection Technology Co., Ltd. was established in 2008, integrating R&D, production, processing and sales of wiring harnesses for various electrical products. We have a professional scientific and technological research and development team, advanced production and inspection equipment, modern enterprise management, and strict quality assurance system. The company's products have passed UL safety certification and are widely used in various electrical products such as portable energy storage power supplies, household energy storage power supplies, industrial and commercial energy storage power supplies, lithium batteries, and industrial control boxes for sweeping robots.
After-sale Service:
- Technical support online service provided.
- OEM available.
- Our product with test report and certification
- Our product with 3 year warranty.
Packing & Delivery:
FAQ:
1. Does it support the customization of wiring harness?
Yes, customized color and length options are available upon request to meet the needs of different applications.
2. Does it comply with relevant safety and certification standards?
Yes, our wiring harnesses comply with industry standards, such as UL, CE, etc., and have passed strict safety certification.
3. How can I get more information on the technical details and customization options for these harnesses?
You can contact our sales team for more detailed information on technical details, customization options and quotations.
